NVIDIA AI Stack#

Nemotron training recipes are built on NVIDIA’s production-grade AI stack. While nemotron.kit handles recipe orchestration, configuration, and artifact lineage, all heavy-lifting for distributed training is delegated to specialized NVIDIA libraries.

NeMo Framework#

Nemotron recipes are part of the broader NeMo Framework ecosystem, which provides end-to-end tools for the full LLM lifecycle:

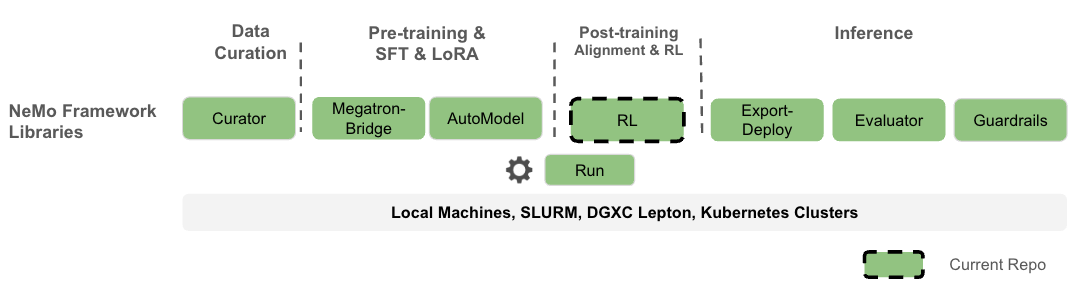

NeMo Framework Overview

Image credit: NeMo-RL Documentation

The Nemotron recipes focus on the Pre-training & SFT (via Megatron-Bridge) and Post-training & RL (via NeMo-RL) stages, with NeMo-Run orchestrating execution across compute backends.

Stack Overview#

Component

Purpose

Used In

Megatron-Core

Distributed training primitives (TP, PP, DP, CP)

All stages

Megatron-Bridge

Model definitions, training loops, HF conversion

Pretrain, SFT

NeMo-RL

RL algorithms (GRPO, DPO), reward environments

RL stage

Megatron-Core#

Megatron-Core provides the foundational primitives for efficient large-scale distributed training. It implements the parallelism strategies that enable training models with billions of parameters across thousands of GPUs.

Parallelism Strategies#

Megatron-Core implements multiple parallelism strategies that can be combined for optimal scaling:

Tensor Parallelism (TP)#

Split model layers across GPUs to handle large weight matrices:

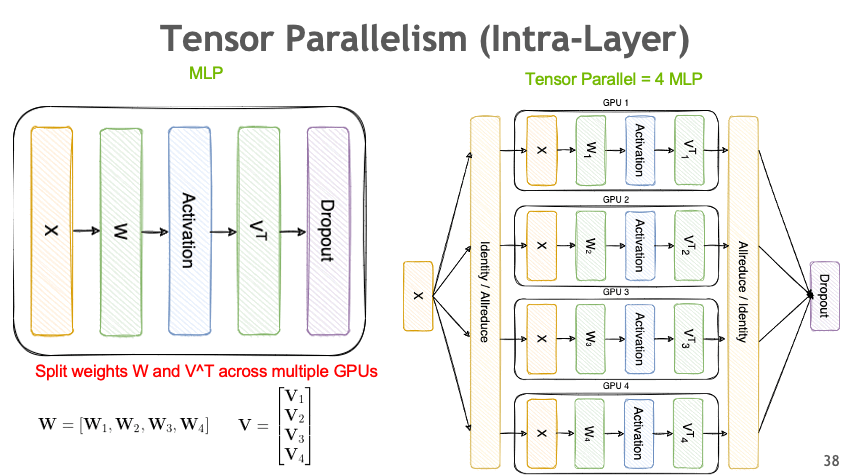

Tensor Parallelism

Image credit: Megatron-Bridge Documentation

Sequence Parallelism (SP)#

Distribute LayerNorm and Dropout activations across the sequence dimension:

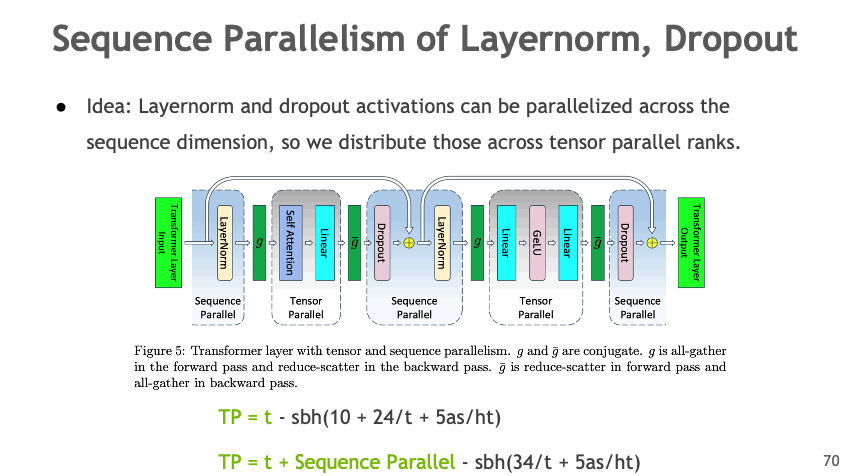

Sequence Parallelism

Image credit: Megatron-Bridge Documentation

Expert Parallelism (EP)#

Distribute MoE experts across GPUs — critical for Nemotron’s sparse MoE architecture:

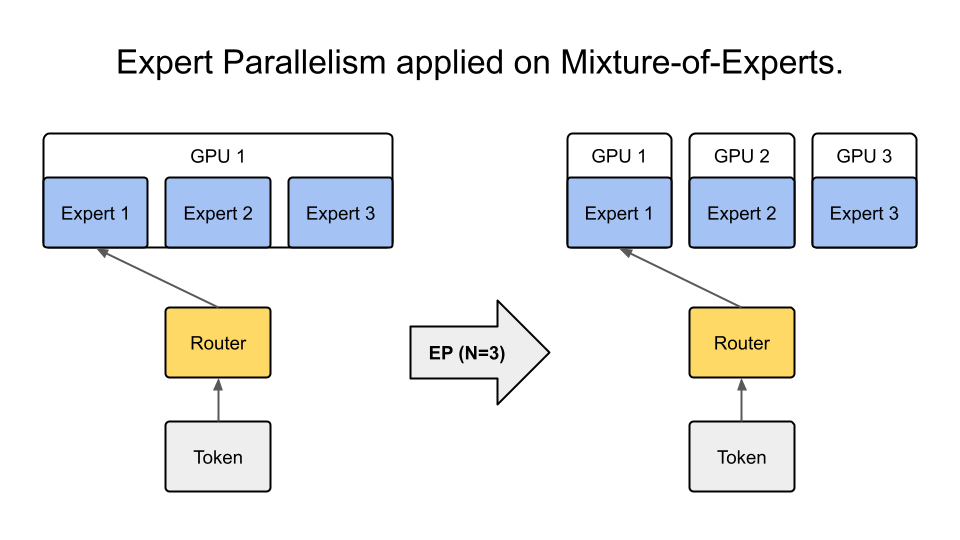

Expert Parallelism

Image credit: Megatron-Bridge Documentation

All Parallelism Types#

Parallelism

Abbreviation

Description

Tensor

TP

Split weight matrices across GPUs

Pipeline

PP

Split model layers into stages

Data

DP

Replicate model, distribute batches

Context

CP

Distribute long sequences across GPUs

Expert

EP

Distribute MoE experts across GPUs

Sequence

SP

Distribute activations in sequence dimension

Documentation#

Megatron-Bridge#

Megatron-Bridge is a PyTorch-native library that bridges Hugging Face models with Megatron-Core. It provides production-ready training loops, checkpoint conversion, and pre-configured recipes for 20+ model architectures.

Key Features#

  • Bidirectional Checkpoint Conversion — Convert between Hugging Face and Megatron formats

  • Scalable Training Loop — Production-ready training with all Megatron parallelisms

  • Pre-configured Recipes — Ready-to-use configurations for Llama, Qwen, DeepSeek, Nemotron, and more

  • Mixed Precision — FP8, BF16, FP4 support via Transformer Engine

  • PEFT Support — LoRA, DoRA for parameter-efficient fine-tuning

How Nemotron Uses It#

Nemotron’s pretraining and SFT stages use Megatron-Bridge for:

  1. Model Definition — NemotronHModel provider for the hybrid Mamba-Transformer architecture

  2. Training Loop — pretrain() and finetune() entry points

  3. Checkpoint Management — Distributed save/load with Megatron format

  4. HF Export — Convert trained checkpoints back to Hugging Face format

# Example: Megatron-Bridge training entry point
from megatron.bridge.training import pretrain
from megatron.bridge.recipes.nemotronh import NemotronH4BRecipe

config = NemotronH4BRecipe().config
pretrain(config)

Configuration#

Megatron-Bridge uses a central ConfigContainer dataclass that combines:

Section

Purpose

model

Model architecture and parallelism settings

train

Batch sizes, iterations, gradient accumulation

optimizer

Optimizer type, learning rate, weight decay

scheduler

LR schedule (warmup, decay)

dataset

Data loading configuration

checkpoint

Save/load intervals and paths

mixed_precision

FP8/BF16 settings

Documentation#

NeMo-RL#

NeMo-RL is a scalable post-training library for reinforcement learning on LLMs and VLMs. It enables everything from small-scale experiments to massive multi-node deployments.

Key Features#

  • GRPO (Group Relative Policy Optimization) — Main RL algorithm with clipped policy gradients

  • DAPO (Dual-Clip Asymmetric Policy Optimization) — Extended GRPO with asymmetric clipping

  • DPO (Direct Preference Optimization) — RL-free alignment from preference data

  • Reward Models — Bradley-Terry reward model training

  • Multi-Environment Training — Math, code, tool-use, and custom reward environments

  • Flexible Backends — DTensor (FSDP2) for native PyTorch, Megatron for large models

How Nemotron Uses It#

Nemotron’s RL stage uses NeMo-RL for:

  1. GRPO Training — Multi-environment RLVR with 7 reward environments

  2. Generation — vLLM backend for fast rollout generation

  3. Reward Computation — Math verification, code execution, GenRM scoring

  4. Ray Orchestration — Distributed policy-environment coordination

# Example: NeMo-RL GRPO training
from nemo_rl.algorithms.grpo import GRPOConfig, run_grpo

config = GRPOConfig(
    policy_model="nvidia/Nemotron-3-Nano-8B-SFT",
    environments=["math", "code"],
    num_rollouts=32,
)
run_grpo(config)

Architecture#

NeMo-RL uses a Ray-based actor model for distributed training. Each “RL Actor” (Policy, Generator, Reward Model) manages a RayWorkerGroup that controls multiple workers distributed across GPUs:

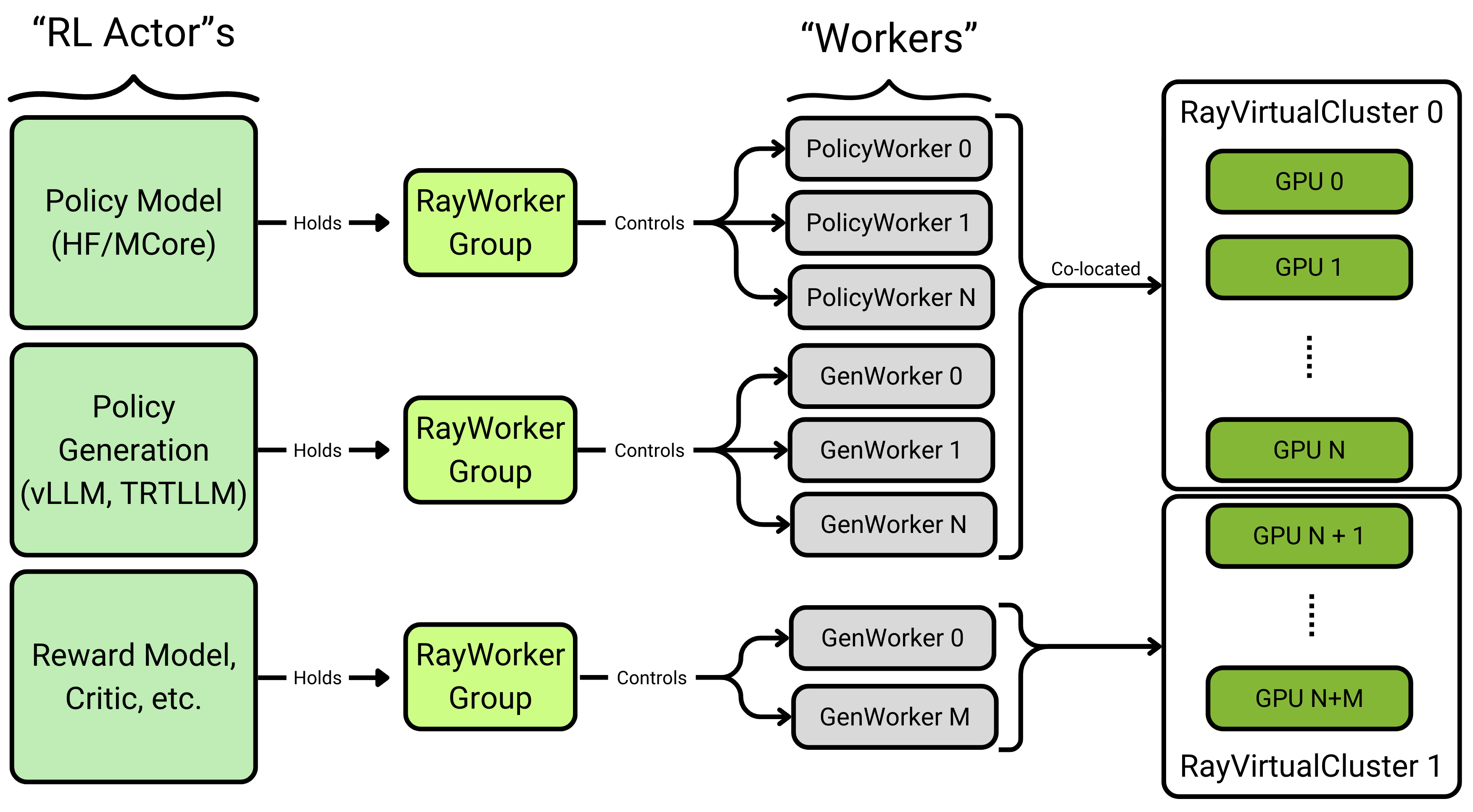

NeMo-RL Actor Architecture

Image credit: NeMo-RL Documentation

Key concepts:

  • RL Actors — High-level components (Policy Model, Generator, Reward Model)

  • RayWorkerGroup — Manages a pool of workers for each actor

  • Workers — Individual processes handling computation

  • RayVirtualCluster — Allocates GPU resources to worker groups

Reward Environments#

NeMo-RL provides several built-in reward environments:

Environment

Description

MathEnvironment

Verifies mathematical solutions

CodeEnvironment

Executes code in sandbox, checks correctness

RewardModelEnvironment

Scores responses with trained reward model

ToolEnvironment

Evaluates tool-use and function calling

NemoGym

Game environments for multi-turn RL

Training Backends#

Backend

Best For

Parallelism

DTensor (FSDP2)

Models up to ~32B

FSDP, TP, CP, SP

Megatron

Large models (>100B)

Full 6D parallelism

Backend selection is automatic based on YAML configuration.

Documentation#

Version Compatibility#

Nemotron recipes are tested with specific versions of the NVIDIA AI stack. Check the container images in recipe configs for exact versions.

Component

Tested Version

Container

Megatron-Core

0.13+

nvcr.io/nvidia/nemo:*

Megatron-Bridge

0.2+

nvcr.io/nvidia/nemo:*

NeMo-RL

0.4+

nvcr.io/nvidia/nemo-rl:*
